• Australian Standards Approved
• AS2208 12mm Toughened Safety Glass
• Over 200 standard modular sizes in stock
• Cost Effective Standard Glass Panels
• Flat polished edges and rounded safety corners
• PASMark Compliance Licence Stamp
• Heat soaked to EN14179

Our spigot range includes three main categories, core drilled, base plated and side mounted, they all have specific use cases based on the installation method.

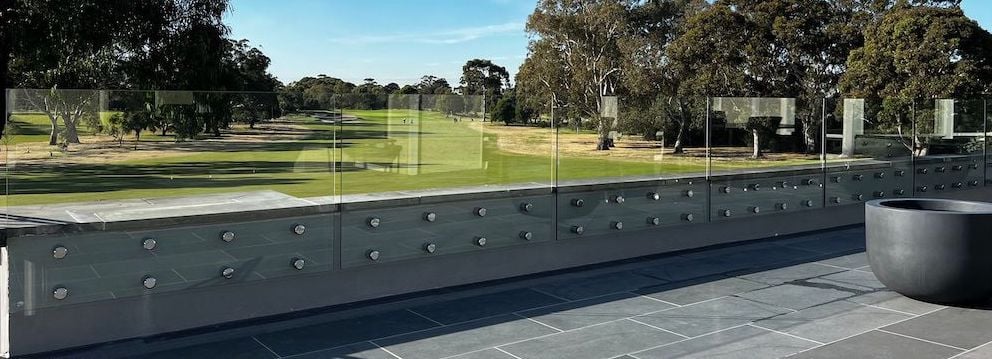

Core drilled spigots

Used when mounted to concrete slabs that are tiled or paved.

The installation method involves non destructive diamond core drilling of a 76mm hole through the paver/tile into the concrete slab and removing the plug from the hole, the spigot is placed in the hole with the panel of glass attached, it is then levelled and secured in place with a high strength grout that permanently bonds the hardware in place.

Once grouted in place a dress ring cover is fitted to finish the installation. This method of installation strongest and most stable of all methods and allows for greater adjustment of levels and allow slopes on paved areas.

Base Plated/Flanged spigots

Used when mounted to the top of a deck or timber subframe.

The framing under the deck requires additional supporting timber to allow the spigots to be adequately secured.

For new structures a small amount of additional work is required to add more timber along the fence line.

For existing decks, it may be required to remove decking boards and install additional strengthening to the subframe prior to the installation of the pool fence.

Side Mounted Spigots & Standoffs

Used when mounted to the side of deck, timber or steel subframe, or a solid masonry/concrete wall The use of side mounted spigots and the requirements for the substrate they are being used on requires special advice to ensure the planned application is suitable.

• 2205 Duplex Stainless Steel
• Pool Fence & Balustrade Compliant
• NATA Tested & Engineered
• Matt Black & Polished Finishes
• Standards: AS1926, AS1170, AS1288
• Range of shapes and sizes
• Custom Colour Options
• Fixing methods engineered and tested

Glass balustrade handrails are available in two types, side mounted and top mounted.

Side Mounted Glass
Balustrade Handrails

Side Mounted – 38mm round
38mm round 316 grade stainless-steel handrail for side mounted fixing to glass, commonly used on staircase balustrades, available in polished stainless-steel finish .

Side Mounted - 50mm round
50mm round 316 grade stainless-steel handrail for side mounted fixing to glass, com m only used on staircase balustrades, available in matt black and polished stainlesssteel finish.

Side Mounted – 50x10mm flat
50x10mm flat rectangular 316 grade stainless-steel handrail for side mounted fixing to glass, commonly used on balcony balustrades, available in m att black and polished stainless-steel finish.

Top Mounted Glass
Balustrade Handrails

Top Mounted – 25x21mm
25x21mm interlinking 316 grade stainless-steel handrail for top mounted fixing to glass, com m only used on balcony balustrades, available in matt black and polished stainlesssteel finish.

• 2205 Duplex Stainless Steel
• Pool Fence & Balustrade Compliant
• NATA Tested & Engineered
• Matt Black & Polished Finishes
• Standards: AS1926, AS1170, AS1288
• Range of shapes and sizes
• Custom Colour Options
• Fixing methods engineered and tested
